Grooved elbows are specialized pipe fittings designed to change the direction of flow in grooved piping systems. They’re widely used in fire protection, HVAC, and industrial piping due to their ease of installation and flexibility.
🔄 Types of Grooved Elbows
| Type | Angle | Description |
|---|---|---|

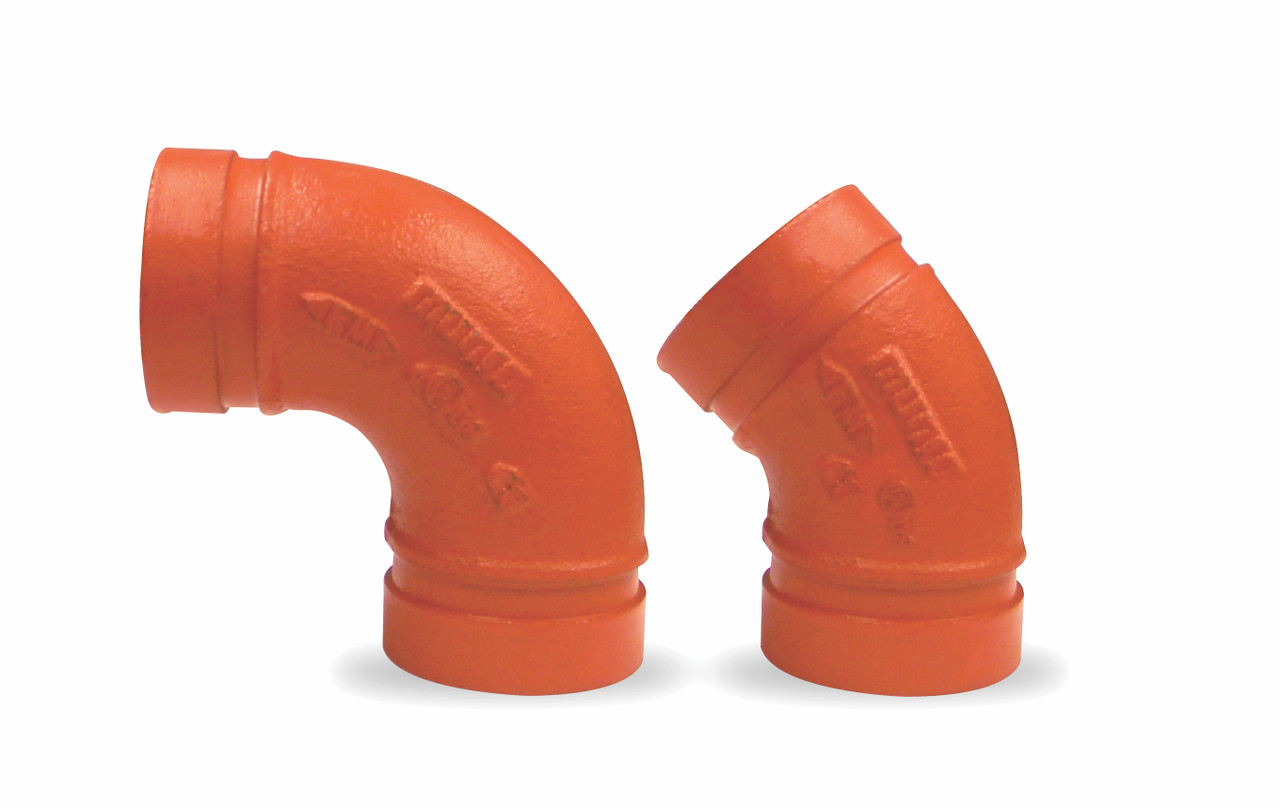

| 90° Elbow | 90° | Makes a sharp right-angle turn in the piping system. |
| 45° Elbow | 45° | Provides a smoother directional change, reducing flow resistance. |
| Long Radius | Varies | Offers gentler bends for high-flow systems or reduced pressure drop. |
🧱 Materials Available
- Ductile Iron: Durable and corrosion-resistant, often epoxy-coated for added protection.
- Carbon Steel: Strong and suitable for high-pressure applications.
- Stainless Steel: Ideal for corrosive environments.
📏 Size Range & Pressure Ratings
- Sizes: From 1¼″ to 24″ (DN32 to DN600)
- Pressure: Up to 300 psi (2.07 MPa), depending on material and design
🛠️ Installation Benefits
- Quick assembly with grooved couplings
- No welding or threading required
- Easy maintenance and disassembly
- Ideal for tight spaces or seismic zones
