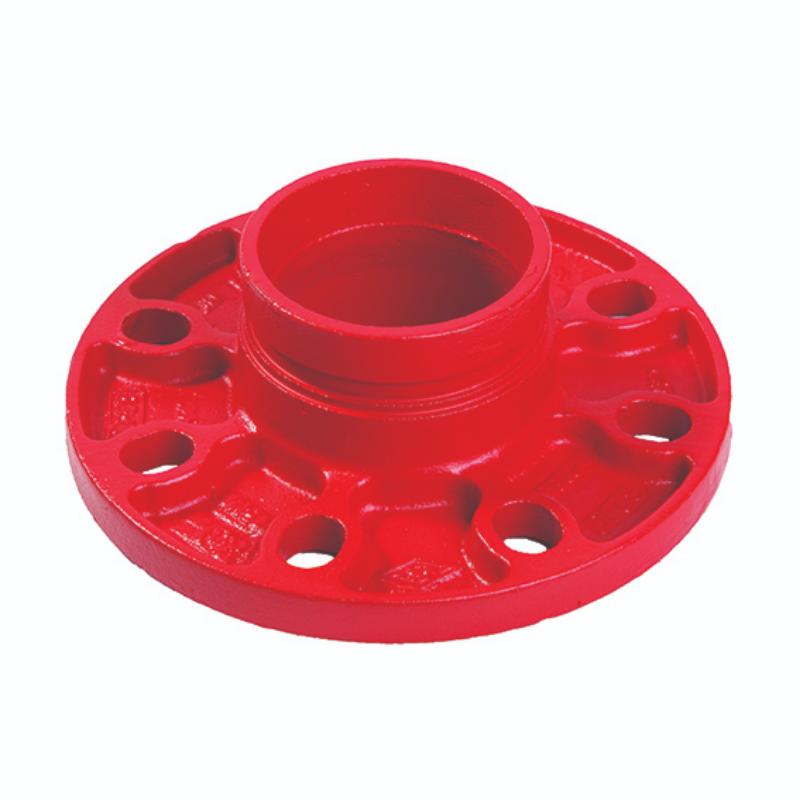

A grooved flange adaptor is a specialized pipe fitting that allows the connection of grooved piping systems to flanged components—such as valves, pumps, or equipment—without the need for welding or threading. It’s a key part of modular piping systems, especially in fire protection, HVAC, and industrial applications.
🔩 Key Features of Grooved Flange Adaptors
| Feature | Description |
|---|---|
| Connection Type | One end has a groove for coupling; the other end is a flange (ANSI or PN rated). |
| Material | Typically made from ductile iron, carbon steel, or stainless steel. |
| Sizes Available | Commonly from 1½″ to 24″ (DN40 to DN600) |
| Pressure Rating | Up to 300 psi (2.07 MPa), depending on design and certification |
| Certifications | UL Listed / FM Approved for fire protection systems |
🛠️ Benefits
- Quick Installation: No welding or threading required
- Versatile: Connects grooved pipe to flanged equipment
- Leak-Tight Seal: Uses a gasket and coupling for secure fit
- Easy Maintenance: Can be disassembled and reassembled easily
