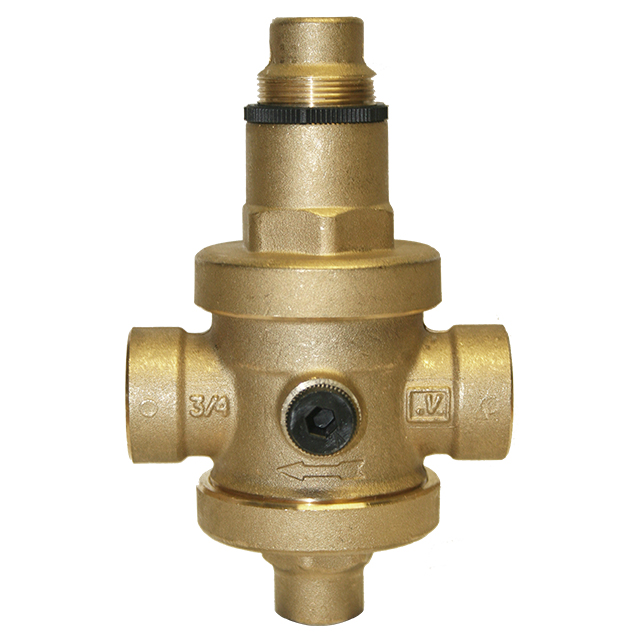

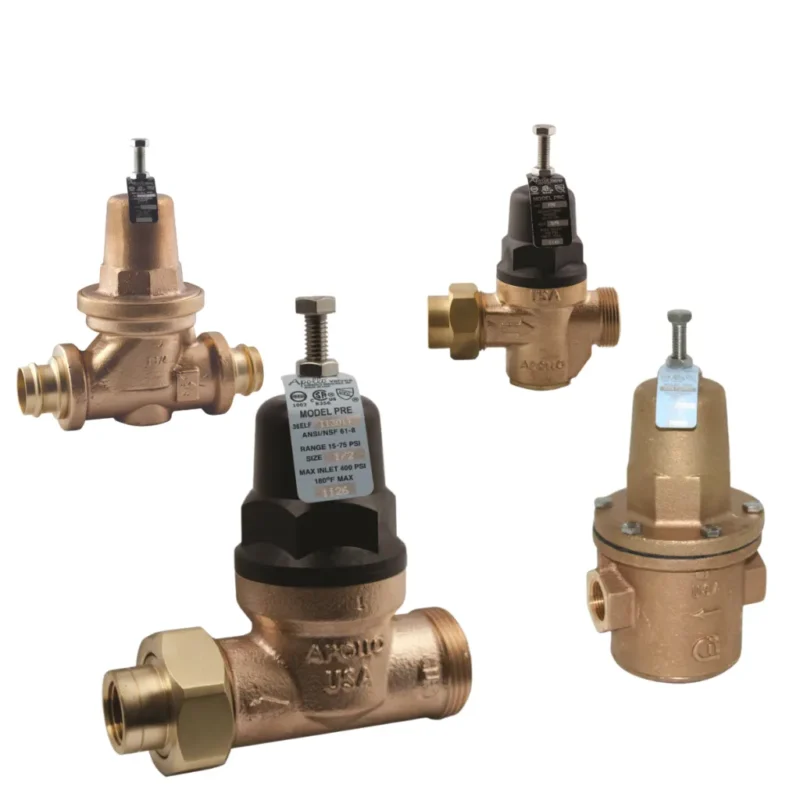

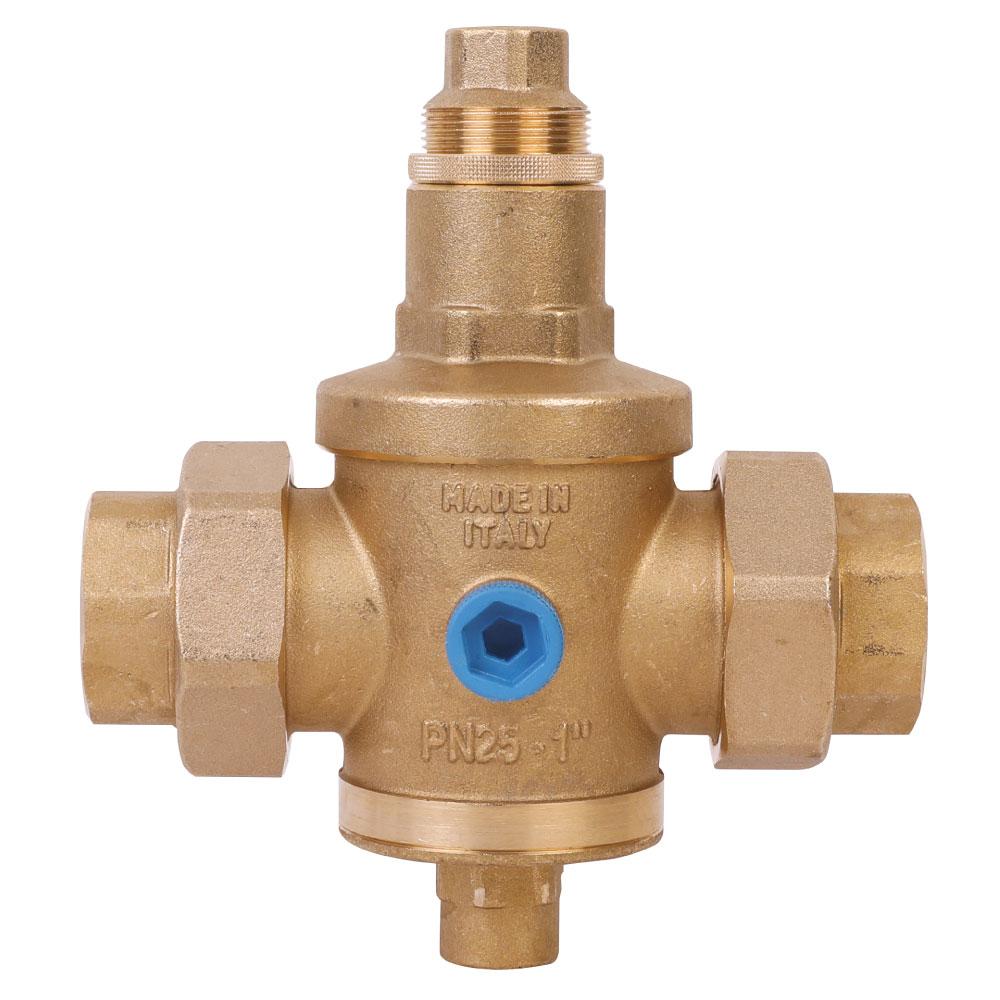

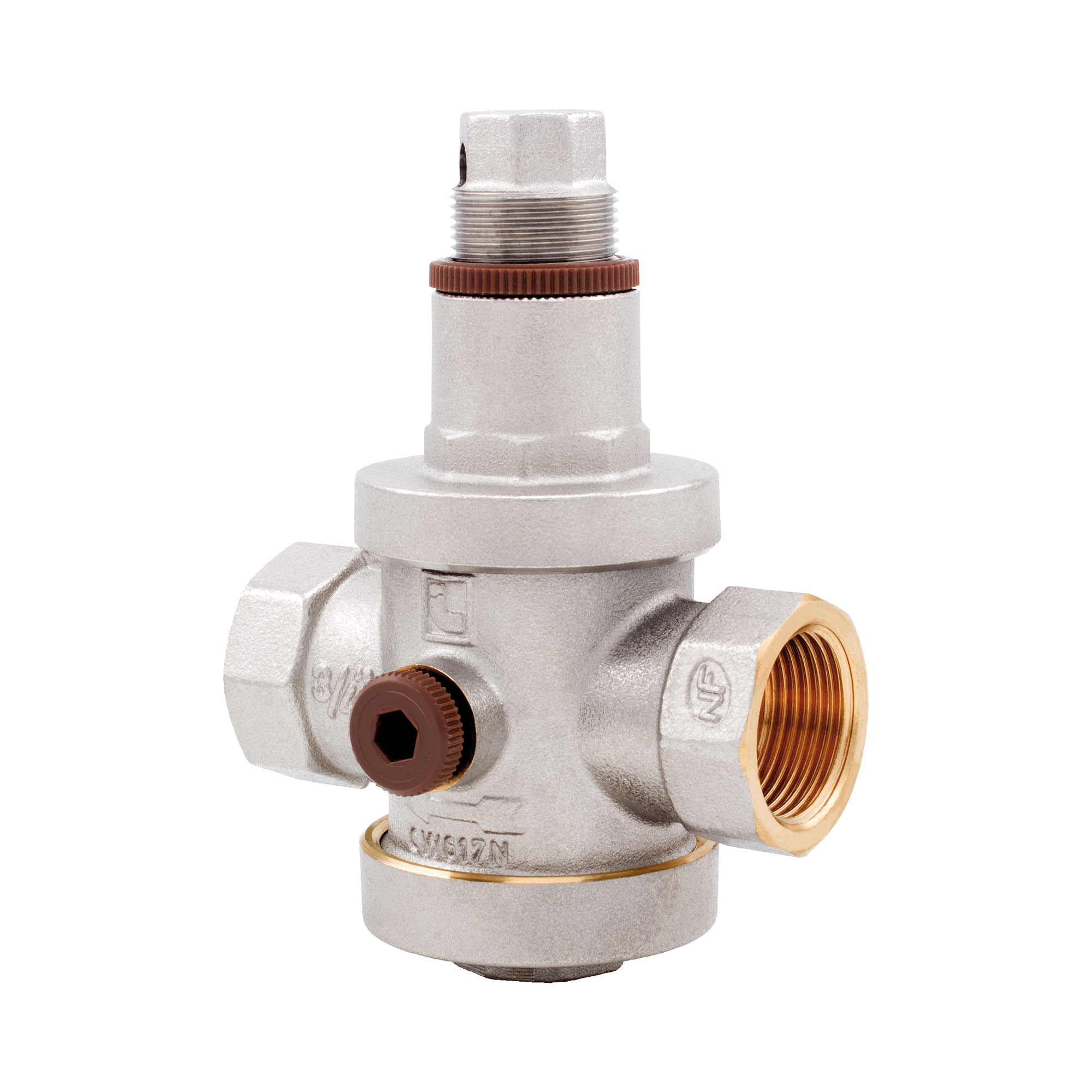

Pressure Reducing Valves (PRV)

Pressure Reducing Valves

Stable Downstream Pressure for Industrial Flow Control

Our Pressure Reducing Valves are engineered to regulate and maintain consistent downstream pressure in fluid systems, regardless of fluctuations in inlet pressure. Ideal for steam, air, gas, and liquid applications, these valves enhance system safety, efficiency, and longevity.

📐 Specifications

• Sizes Available:
  ½” to 6″ (DN15 to DN150)
  Larger sizes available upon request
• Pressure Range:
  Inlet: up to 40 bar (580 psi)
  Outlet: adjustable from 0.5 bar to 30 bar
• Material of Construction:
  • Body: Stainless Steel (SS304, SS316), Cast Iron, Ductile Iron, Bronze
  • Internals: Stainless Steel, PTFE, EPDM, NBR
  • Diaphragm/Spring: Reinforced elastomers or stainless steel
• End Connections:
  Threaded (BSP/NPT), Flanged (ANSI/DIN), Socket Weld
• Temperature Range:
  -10°C to +220°C (depending on seal material)

✅ Features

• Precise pressure control with adjustable set points
• Corrosion-resistant body and trim for extended service life
• Low maintenance design with accessible internals

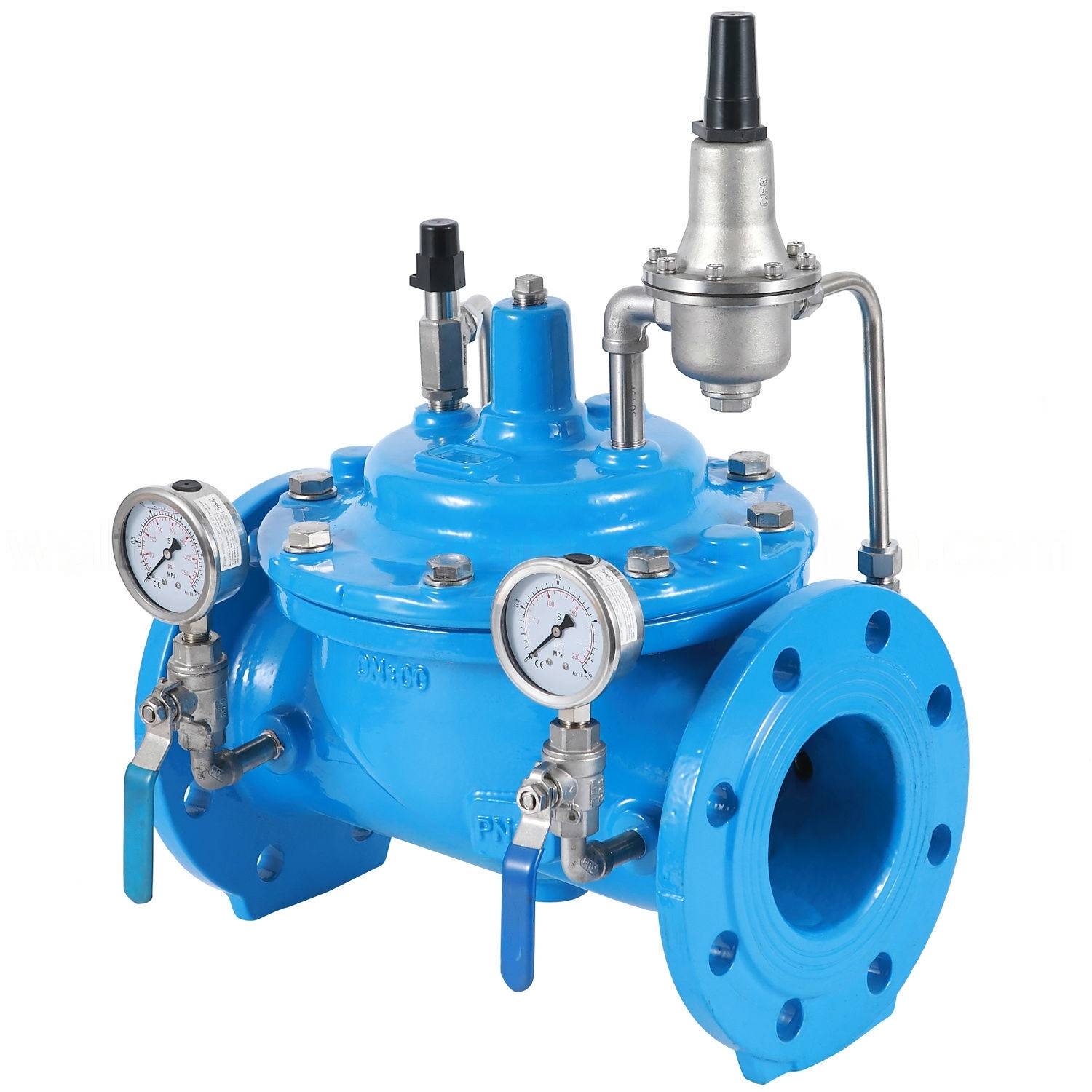

• Optional pressure gauges and pilot-operated configurations
• Compliant with ISO, ASME, and EN standards

🏭 Applications

• Steam distribution and condensate recovery
• Compressed air systems
• Water supply and irrigation networks
• Chemical and process industries
• HVAC and fire protection systems
