Lockout PadLock

Anchor Building Materials Trading LLC supplies premium lockout padlocks engineered for OSHA‑aligned Lockout/Tagout (LOTO) programs. Built with reinforced nylon bodies and corrosion‑resistant shackles, these padlocks ensure maximum worker safety, electrical insulation, and long‑term durability in industrial environments.

Technical Specifications (Verified)

Body Material

• Reinforced Nylon (Non‑conductive, Anti‑spark) — Ideal for electrical and industrial LOTO applications.
• Thermoplastic Body — UV‑stable, chemical‑resistant, suitable for corrosive environments.
• Aluminum Body — Corrosion‑resistant, suitable for food processing and harsh environments.

Shackle Material

• Aluminum Shackle — Lightweight, corrosion‑resistant.
• Chrome‑Plated Boron Alloy Steel Shackle — High cut resistance.
• 316 Stainless Steel Shackle — Marine‑grade corrosion resistance.

Key Mechanism

• Key‑Retaining Cylinder — Key cannot be removed unless locked, preventing accidental unlocking.
• 5‑Pin or 6‑Pin Tumbler — High tamper resistance and unique key codes.
• Keyed Different / Keyed Alike / Master Keyed Options — Supports structured LOTO programs.

Environmental Resistance

• Corrosion‑resistant anodized or stainless shackles for severe weather and marine environments.
• Non‑conductive nylon bodies for electrical safety.
• Temperature Range: –20°C to +120°C (nylon body).

Available Sizes



Body Dimensions

• 38 mm width.
• 35 mm width.
• 32 mm width × 77 mm height × 16 mm depth.

Shackle Dimensions



• Shackle Diameter: 4.72 mm to 6 mm depending on model.
• Shackle Height: 38 mm, 76 mm (standard and long‑shackle versions).
• Shackle Width: 16 mm to 25 mm depending on model.

Key Features

• Non‑conductive, spark‑resistant body for electrical safety.
• High cut‑resistance shackles (boron alloy / stainless steel).
• Key‑retaining mechanism prevents accidental unlocking.

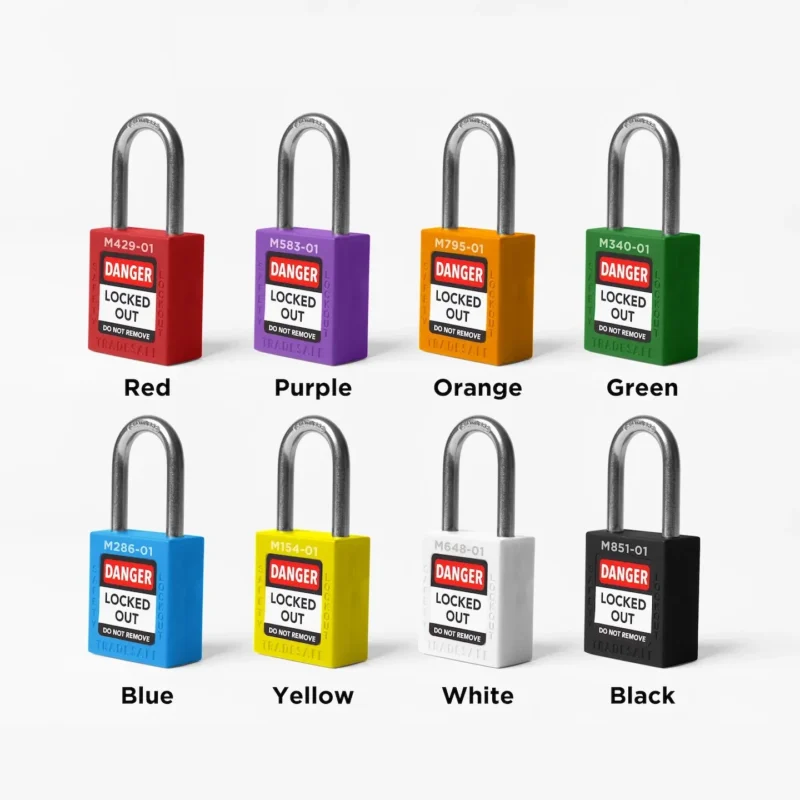

• Available in multiple colors for worker identification.
• Supports OSHA “One Worker, One Lock, One Key” compliance.

Applications

• Electrical lockout
• Machinery isolation
• Industrial maintenance
• Food processing facilities
• Chemical plants
• Marine and corrosive environments
