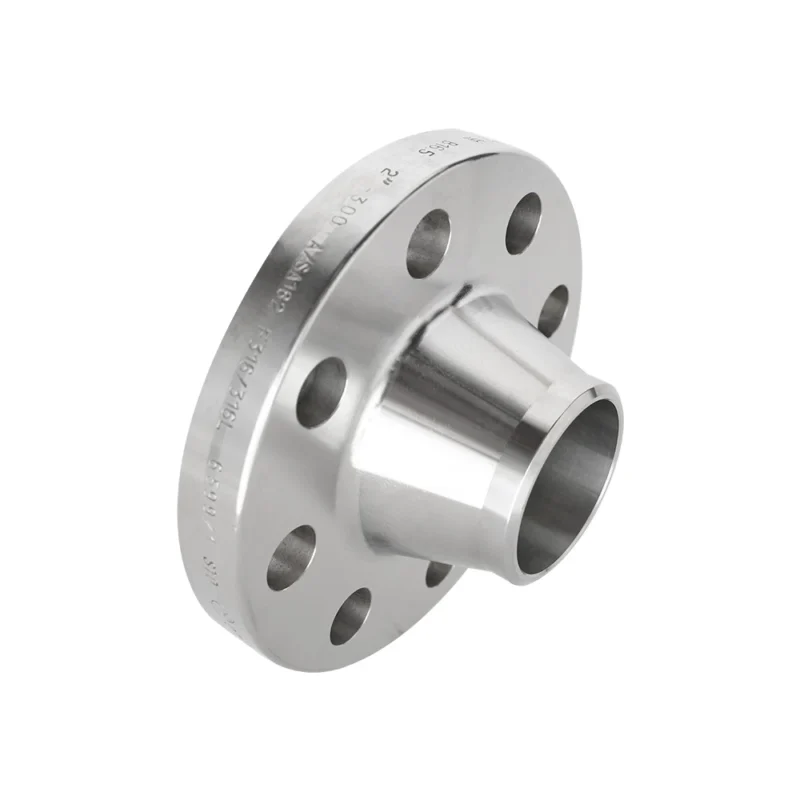

Weld Neck Flange (WNRF)

Weld Neck Flanges supplied by Anchor Building Materials Trading LLC are engineered for the most demanding industrial piping systems. Featuring a long tapered hub and butt‑weld connection, these flanges provide superior structural integrity, reduced stress concentration, and exceptional performance under high pressure and high temperature.

Manufactured according to ANSI/ASME B16.5, B16.47, DIN, and API standards, Weld Neck Flanges are widely used in oil & gas pipelines, petrochemical plants, refineries, power generation systems, and critical industrial applications. Their robust design ensures leak‑free operation, excellent fatigue resistance, and long‑term durability in UAE’s harsh industrial environments.

Available in raised face (RF), ring‑type joint (RTJ), and flat face (FF) configurations, Weld Neck Flanges are suitable for a wide range of pressure classes and piping materials.

Key Features

• Long tapered hub for superior stress distribution
• Butt‑weld connection ensures strong, leak‑free joints
• Ideal for high‑pressure and high‑temperature service
• Manufactured to ANSI/ASME, DIN, and API standards
• Excellent fatigue and vibration resistance
• Available in RF, RTJ, and FF facing types
• Suitable for critical and hazardous applications
• High mechanical strength and corrosion resistance

Sizes Available

• ½” to 60″ (DN15 to DN1500)
• Pressure Classes: 150, 300, 600, 900, 1500, 2500
• API 6A pressure ratings available
• Custom sizes and thicknesses available upon request

Applications

• Oil & gas pipelines and wellhead systems
• Petrochemical and refinery operations
• High‑pressure steam and process lines
• Power generation and boiler systems
• Chemical and industrial fluid transfer
• Offshore platforms and subsea installations
• High‑temperature and corrosive media handling

Material of Construction

Carbon Steel

• ASTM A105, ASTM A350 LF2 (low‑temperature service), ASTM A516 Gr. 60/70

Stainless Steel

• SS304 / SS304L / SS316 / SS316L

Alloy Steel

• ASTM A182 F11, F22, F5, F9, Duplex & Super Duplex Stainless Steel,
• Inconel, Monel, Hastelloy (for severe service)

Facing Types

• Raised Face (RF), Ring‑Type Joint (RTJ), Flat Face (FF)

Benefits for Your Project

• Provides the strongest and most reliable flange‑to‑pipe connection
• Ensures leak‑free performance in extreme conditions
• Reduces stress concentration and improves pipeline lifespan
• Ideal for UAE’s oil & gas and heavy industrial sectors
• Compatible with major international flange standards
• Suitable for critical, hazardous, and high‑pressure applications
